Optical Prisms

/China Suppliers Custom Optical Rhomboid Prism

China Suppliers Custom Optical Rhomboid Prism

The Rhomboid prism application for rhomboid-prism is controlling and redirecting the optical path without affecting the image direction. They can be used to displace an optical center line for light beam folding and stereoscopic systems of different sizes.

  • Product Origin:

    China
  • Shipping Port:

    Fuzhou, China
  • Lead Time:

    5-6weeks
Share To : f t y b l ins
  • Product Detail

9.1. What is rhomboid prism?

Rhmboid prisms are used to shift an incident beam without angular deviation or orientation change.. In imaging applications, rhomboid prism will displace the optical axis without inverting the image.


9.2. What’s the application of Rhmboid prisms?

Rhomboid prisms used in optics, imaging applications and photonics applications.


9.3. What is HG OPTRONICS regular manufacturing capability for  Rhmboid prisms?

Specification

Standard capability

Material

N-BK7 Grade A optical glass

Dimensional Tolerance

+/-0.1mm

Angle tolerance

±3 arcmin

Flatness

λ/4@632.8nm

Surface Quality

40-20

Coating: Optional


9.4.What is the typical size?

Part No.

LxD(mm)

H(mm)

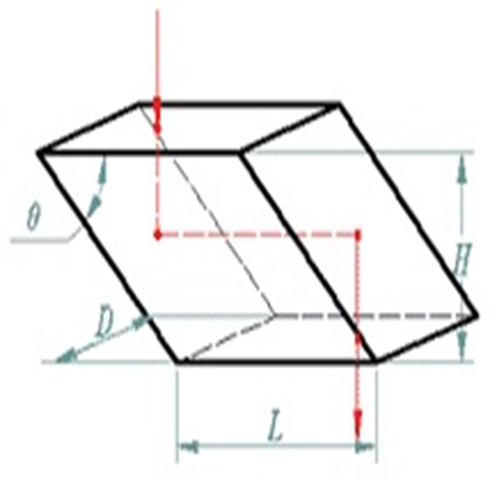

θ

HGP19005A

5.0x5.0

7.1

45°

HGP19008A

10.0x10.0

14.2

45°

HGP19014A

15.0x15.0

21.2

45°

HGP19019A

20.0x20.0

28.3

45°

HGP19025A

25.0x25.0

35.4

45°
