Spherical Lens

/Optical Glass Plano-Concave Lenses

Optical Glass Plano-Concave Lenses

Plano Concave Lenses are ideal for beam expansion, light projection, or for expanding an optical system's focal length. Plano Concave Lenses, which have one concave surface, are Optical Lenses with negative focal lengths. Plano-Concave Lenses should be shaped with the plano, or flat, surface towards the desired focal plane.Plano-Concave Lenses are ideal for use in a range of applications or industries. HG OPTRONICS offers Plano-Concave lenses with a variety of coating options.

  • Product Origin:

    China
  • Shipping Port:

    Fuzhou, China
  • Lead Time:

    5-6weeks
Share To : f t y b l ins
  • Product Detail

2.1.What are plano-concave lenses used for?

Plano concave lenses, which have one concave surface, are optical lenses with negative focal lengths, they are ideal for beam expansion, light projection, or for expanding an optical system's focal length. HG OPTRONICS offers Plano-Concave lenses with a variety of coating options, and they are ideal for use in a range of applications or industries.


2.2.What kinds of materials can HG OPTRONICS use to make plano-concave lenses?

CDGM optical glasses, SCHOTT, OHARA,YAG,PPKTP, Fused Silica, Sapphire, Germanium, Silicon, calcium fluoride (CaF2), Zinc Selenide (ZnSe), and other infrared materials.


2.3.plano-concave lenses Common Specification

Material

Optical glass, BK7,H-K9L, Fused Silica, CDGM,Schott, OHARA, YAG CaF2,Germanium etc.

Dimension Tolerance

±0.1mm(Standard), ±0.01mm(High Precision)

Center Thickness Tolerance

±0.1mm(Standard), ±0.02mm(High Precision)

Paraxial Focal Length

±1%

Surface quality

40/20(Standard), 10/5(High Precision)

Clear Aperture

>90%

Surface Figure

λ/4(Standard), λ/10(High Precision) @633nm

Centration

3 arc minutes

Bevel

<0.2mm×45°

Coating

Upon requirement

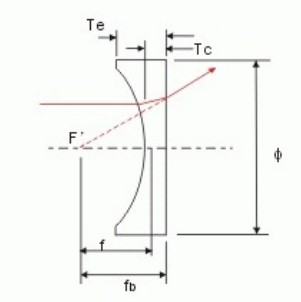

2.4. plano-concave lenses case show


Part No.

Material

F(mm)

Φ(mm)

R(mm)

Tc(mm)

Te(mm)

Fb(mm)

HGQ21005

BK7

-8.0

6.0

4.15

2.0

3.30

-9.30

HGQ21006

BK7

-20.0

6.0

-10.37

2.0

2.44

-21.30

HGQ21007

BK7

-30.0

6.0

-15.56

2.0

2.29

-31.32

HGQ21020

BK7

-100.0

12.7

-5, 1.88

2.0

2.39

-101.33

HGQ21024

BK7

-50.0

25.4

-25.94

2.0

5.32

-51.33

HGQ21025

BK7

-75.0

25.4

-38.90

2.0

4.13

-76.31

HGQ21101

BK7

-150.0

25.4

-77.80

2.0

3.04

-151.30

HGQ21102

BK7

-200.0

25.4

-103.75

2.0

2.78

-201.33

HGQ21103

BK7

-250.0

25.4

-129.72

2.0

2.62

-251.39

HGQ21110

BK7

-300.0

38.0

-155.60

2.0

3.16

-301.30

HGQ21211

BK7

-200.0

50.8

-103.75

2.0

5.16

-201.34

HGQ21212

BK7

-300.0

50.8

-155.60

2.0

4.00

-301.30

HGQ21213

BK7

-500.0

50.8

-259.40

2.0

3.25

-501.40

HGQ21215

JGS1

-15.0

12.7

6.90

2.0

6.20

-16.40

HGQ21219

JGS1

-20.0

12.7

9.20

2.0

4.50

-21.40

HGQ21220

JGS1

-25.0

12.7

11.50

2.0

3.90

-26.40

HGQ21235

JGS1

-30.0

12.7

13.80

2.0

3.50

-31.40

HGQ21236

JGS1

-50.0

25.4

23.00

2.0

5.80

-51.40

HGQ21237

JGS1

-75.0

25.4

34.51

2.0

4.40

-76.40

HGQ21251

JGS1

-100.0

25.4

46.01

2.0

3.80

-101.40

HGQ21252

JGS1

-150.0

25.4

69.01

2.0

3.20

-151.40

HGQ21253

JGS1

-200.0

38.0

92.02

3.0

5.00

-202.10

HGQ21254

JGS1

-350.0

38.0

161.03

3.0

4.10

-352.10

HGQ21255

JGS1

-500.0

38.0

230.04

3.0

3.80

-502.10

HGQ21256

CaF2

-100.0

25.4

42.50

2.0

3.90

-101.40

HGQ21341

CaF2

-200.0

25.4

85.00

2.0

3.00

-201.40

HGQ21544

CaF2

-500.0

25.4

212.50

2.0

2.40

-501.40



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
UV Fused Silica Double-Convex  Lenses
Double-Convex Lenses

Double Convex Lenses are used in image relay applications, or for imaging objects at close conjugates. Double Convex Lenses have positive focal lengths, along with two convex surfaces with equal radii. Aberrations will increase as the conjugate ratios increase.  Double-Convex Lenses are used in a range of industries or applications. HG OPTRONICS offers Double Convex lenses with a variety of coating options.

Read More

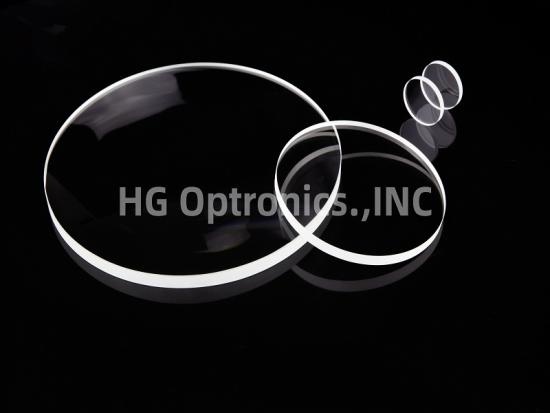

H-K9L Plano-Convex Lenses
UV Fused Silica Plano-Convex Lenses

A Plano-Convex lens causes light to focus to a point,it has a positive focal length,which is ideal for light collimation or for focusing applications utilizing monochromatic illumination, in a range of industries. HG OPTRONICS offers Plano-Convexlenses with a variety of coating options.

Read More
High Presion Double Concave Lenses
Coated Double-Concave Lenses

Double Concave Lenses are used in beam expansion, image reduction, or light projection applications. These lenses are also ideal for expanding the focal length of an optical system. Double Concave Lenses, which have two concave surfaces, are Optical Lenses with negative focal lengths. HG OPTRONICS offers Double Concave lenses with a variety of coating options.

Read More

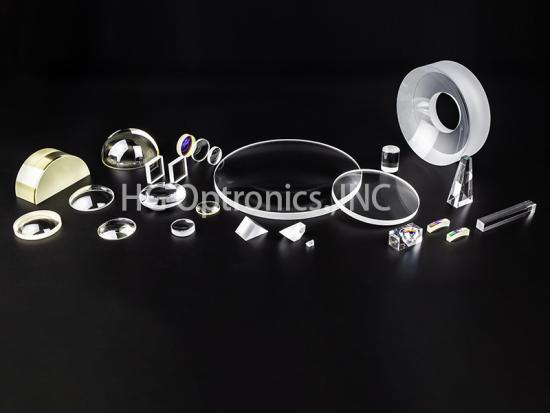

Laser Grade Meniscus Lenses
