Double-Convex Lenses

Double Convex Lenses are used in image relay applications, or for imaging objects at close conjugates. Double Convex Lenses have positive focal lengths, along with two convex surfaces with equal radii. Aberrations will increase as the conjugate ratios increase.  Double-Convex Lenses are used in a range of industries or applications. HG OPTRONICS offers Double Convex lenses with a variety of coating options.







  • Product Origin:

    China
  • Shipping Port:

    Fuzhou, China
  • Lead Time:

    5-6weeks
Share To : f t y b l ins
  • Product Detail


3.1. What is the  double convex lens?

A lens is called a convex lens if it is thicker at the center than at the edges. ... Double convex lenses have focal points on both sides of the lens; these and the points at twice the focal length are used to locate objects and images.


3.2. What does a double convex lens do?

The fact that a double convex lens is thicker across its middle is an indicator that it will converge rays of light that travel parallel to its principal axis. A double convex lens is a converging lens.


3.3. double convex lens Common Specification

Material

Optical glass, BK7,H-K9L, Fused Silica, CDGM,Schott, OHARA, YAG CaF2,Germanium etc.

Dimension Tolerance

±0.1mm(Standard), ±0.01mm(High Precision)

Center Thickness Tolerance

±0.1mm(Standard), ±0.02mm(High Precision)

Design wavelength

546.1nm

Focal tolerance

±1%

Surface quality

40/20(Standard), 10/5(High Precision)

Clear Aperture

>90%

Surface flatness

N=3 △N=0.5

Centration

3 arc minutes

Bevel

<0.2mm×45°

Coating Optional

Single layer MgF2, Multiple layers BBAR coating

Designed for 0° Angle of Incidence

3.4. double convex lens case show

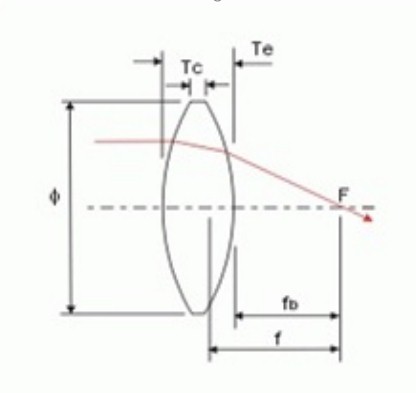

Part No

Material

F(mm)

Φ(mm)

R1=R2(mm)

Tc(mm)

Te(mm)

Fb(mm)

HGQ22005

BK7

10.0

10.0

9.450

4.9

2.0

8.20

HGQ22006

BK7

15.0

12.7

14.660

4.9

2.0

13.30

HGQ22008

BK7

20

12.7

20.010

4

2.0

18.60

HGQ22010

BK7

25

12.7

25.280

3.6

2.0

23.80

HGQ22011

BK7

30

12.7

30.520

3.3

2.0

28.90

HGQ22015

BK7

40

12.7

40.950

3

2.0

39.00

HGQ22016

BK7

50

25.4

50.920

5.2

2.0

48.30

HGQ22020

BK7

60

25.4

61.400

4.7

2.0

58.50

HGQ22025

BK7

75

25.4

77.040

4.1

2.0

73.60

HGQ22026

BK7

100

25.4

103.050

3.6

2.0

98.80

HGQ22028

BK7

125

25.4

129.020

3.3

2.0

123.90

HGQ22036

BK7

150

25.4

154.970

3

2.0

149.00

HGQ22038

BK7

200

25.4

206.840

2.8

2.0

199.00

HGQ22040

BK7

500.0

30.0

518.306

2.4

2.0

499.20

HGQ22041

BK7

250.0

50.0

258.220

5.4

3.0

248.20

HGQ22043

BK7

400.0

50.0

413.870

4.5

3.0

398.50

HGQ22046

BK7

500.0

50.0

517.580

4.2

3.0

498.60

HGQ22077

JGS1

15.0

12.7

12.900

5.3

2.0

13.10

HGQ22079

JGS1

20.0

12.7

17.690

4.4

2.0

18.40

HGQ22081

JGS1

30.0

12.7

27.040

3.5

2.0

28.80

HGQ22088

JGS1

40.0

12.7

36.310

3.1

2.0

38.90

HGQ22121

JGS1

25.0

25.4

21.220

10.4

2.0

21.10

HGQ22135

JGS1

35.0

25.4

30.990

7.4

2.0

32.40

HGQ22142

JGS1

50.0

25.4

45.100

5.7

2.0

48.00

HGQ22150

JGS1

75.0

25.4

68.320

4.4

2.0

73.50

HGQ22152

JGS1

100.0

25.4

91.420

3.8

2.0

98.70

HGQ22161

JGS1

150.0

38.0

137.130

5.7

3.0

148.00

HGQ22163

JGS1

200.0

38.0

183.130

5.0

3.0

198.30

HGQ22165

JGS1

500.0

38.0

459.480

3.8

3.0

498.70
