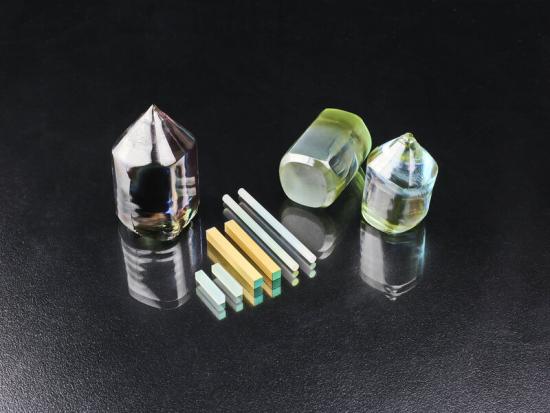

Nd:GdVO4 Crystal Neodymium Doped Gadolinium Orthovanadate

Nd:GdVO4, is a promising material for diode pumped lasers. Similar to the more well-known Nd:YVO4 crystal, Nd:GdVO4 crystal also exhibits high gain, low threshold, and high absorption coefficients at pumping wavelengths. Nd:GdVO4 has the additional advantage over Nd:YVO4 of a much higher thermal conductivity. For CW lasing at 1.06 um and 1.34 um and intracavity doubling with KTP and LBO, the gadolinium vanadate have produced a higher slope efficiency or optical conversion than Nd:YVO4.

  • Shipping Port:

    Fuzhou, China
  • Lead Time:

    3-4weeks
Share To : f t y b l ins
  • Product Detail

Descriptions:


Nd:GdVO4 crystals has the additional advantage over Nd:YVO4 of a much higher thermal conductivity. For CW lasing at 1.06 um and 1.34 um and intracavity doubling with KTP and LBO, the gadolinium vanadate have produced a higher slope efficiency or optical conversion than Nd:YVO4.


Physical properties: Comparison between Nd:GdVO4 and Nd:YVO4 laser crystals

Crystal

Nd:GdVO4

Nd:YVO4

Crystal Structure,Space Group

Tetragonal, I41/amd

Tetragonal, I41/amd

Lattice constants (nm)

a:0.721 b:0.635

a:0.721 b:0.629

Melting temperature(0 C)

1780

1825

Thermal expansion @250C, x10-6/0C

a

1.7

a

4.43

b

7.3

b

11.4

Specific heat @250C, cal/mol·K

32.6

24.6

dn / dT, x10-6/0C

4.7

2.7



Optical properties regarding Neodymium Laser Host Crystals

Crystal

Nd:YVO4

Nd:GdVO4

Nd:YAG

Laser wavelengths

1064.3nm,1342.0 nm

1062.9 nm,1340 nm

1064.2 nm,1338.2 nm

Emission bandwidth

(linewidth at 1064 nm)

0.8nm

No data

0.45nm

Effectivelasercross section(emission cross section at 1064 nm)

15.6 x 10-19 cm2

7.6 x 10-19cm2

6.5 x 10-19cm2

Polarization

Parallel to c-axis

Parallel to c-axis

unpolarized

Radioactive lifetime (microseconds) at 1% Nd doping

~ 100 µs

~ 95 µs

230 µs

Pump wavelength

808.5 nm

808.4 nm

807.5 nm

Thermal conductivity, W/m/K

5.1

11.7

14

Peak pump absorption at 1%

doping

~ 41 cm-1

~ 57 cm-1




HGO offers NdGdVO4 specifications:

Doping

0.1%~3%

Doping concentration tolerance

±0.05%(atm%<1%),±0.1%(atm%≥1%)

Orientation

A-cut/C-cut +/-0.5deg.

Dimension Tolerance

±0.1mm

Flatness

λ/10 @ 632.8nm

Wavefront distortion

λ/6@ 632.8nm

Surface Quality

10/5 per MIL-O-13830B

Parallelism

10

Perpendicularity

10

Bevel/Chamfer

<0.1mm@45deg.

Chips

<0.1mm

Clear Aperture

>95%

Coating

AR/HR/PR (IAD, EB, IBS) coating upon customer’s request

Damage Threshold

750MW/CM2 at 1064nm, TEM00, 10ns, 10Hz

Quality Warranty Period

One year under proper use


Advantages:

1) Large stimulated emission cross section at laser wavelength

2) High absorption coefficient and wide bandwidth at pump wavelength;

3) Low dependency on pump wavelength;

4) Good thermal conductivity;

5) Low lasing threshold and high slope efficiency;

6) High laser induced damage threshold;

7) Strongly-polarized laser output.


Why Choose HGO ?

HG OPTRONICS.,INC. is capable of growing and processing this single crystal Nd:GdVO4 neodymium-doped gadolinium orthovanadate. As a professional laser crystals supplier, we supply directly and indirectly more than 70% percent of such laser host crystals with high quality and extremely low price to our endusers. And get good reputation from customers all over the world.
