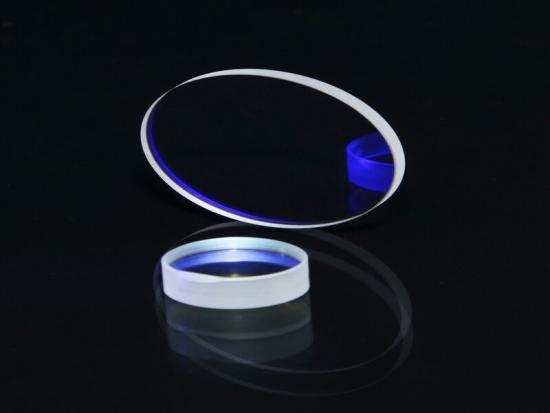

CaF2 crystal Calcium Fluoride windows

CaF2 or Calcium Fluoride is a cubic crystal with an excellent transmission from 130 nm to 10 μm and has widespread applications as transparent windows in the ultraviolet and infrared spectra.

  • Product Origin:

    China
  • Shipping Port:

    Fuzhou, China
  • Lead Time:

    3-4weeks
Share To : f t y b l ins
  • Product Detail

Descriptions:

CaF2 or Calcium Fluoride is a cubic crystal with an excellent transmission from 130 nm to 10 μm and has widespread applications as transparent windows in the ultraviolet and infrared spectra.Calcium fluoride(CaF2) is a very important optical functional crystal, which has good optical properties, mechanical properties and chemical stability. It can be used as optical crystal, laser crystal and inorganic scintillation crystal. It has a wide transmittance range (0.125-10 μm), and is widely used as optical medium from vacuum ultraviolet to mid infrared. CaF2 crystal is an ideal optical material for achromatic lenses because of its special refractive index and relative dispersion. At present, deep UV excimer laser lithography is developing from 193 nm to 121 nm. CaF2 single crystal has the advantages of good ultraviolet transmittance, high laser damage resistance threshold, low stress birefringence and high refractive index, which makes it the best choice for the research of deep UV excimer laser lithography. In terms of laser applications, laser diode pumped CaF2 crystals activated by Er3+, Tm3+, Yb3+ and other 3-valent rare earth ions were obtained at room temperature.


Main application:

1) VUV , UV ,IR optical systems

2) CaF2 crystals used for stable femtosecond white light generation from UV to IR.


Basic properties of CaF2 crystal:

Chemical Formula

CaF2

Maximum Size

φ180mm

Transmission range (um)

0.15-9.0

Density (g/cm3)

3.18

Melting Point ()

1418

Mohs Scale of Mineral Hardness

4

Thermal Expansion Coefficient (10-6/K)

16.2-19.4

Thermal Conductivity

9.17

Dissolubility (g/cm3)

0.0016

Wavelength (um)

0.2

Refractive Index

1.4951

Wavelength (um)

0.2; 0.5; 1.0; 5.0; 10.0; 12.0

Refractive Index

1.4951; 1.4365; 1.4289; 1.3990; 1.3002; 1.2299

Absorption Coefficient (cm-1)

0.10@0.2um; 0.01@0.4um;0.03@2.7um


HGO offers CaF2 specifications:

Orientation:

C-cut or<001>; random (-RM) or as specified

Wavefront Distortion:

λ/6 per inch @ 632.8 nm

Dimension Tolerances

rods with diameter: +0.0/-0.05 mm , Length: ±0.1 mm

Surface Quality:

20/10 Scratch/Dig MIL-O-1380A

Parallelism:

< 20

Perpendicularity:

< 10

Clear Aperture:

> 85%

Surface Flatness:

< λ/6 @ 632.8 nm

Chamfer:

< 0.25 mm @ 45deg.

Size

Upon customer request

Coating

Uncoated or upon customer’s request

Quality Warranty Period

One year under proper use



Why Choose HGO ?

HG OPTRONICS.,INC. has the ability to supply high quality CaF2 or Calcium Fluoride Crystal in mass production quantity. Material from HGO features with high transmittance in UV and IR wavelength ranges. HGO offer supplies [001] cut (i.e. the surface is perpendicular to the [001] axis) high quality CaF2 windows for continuum generation. CaF2 windows cut along a random orientation and polycrystalline CaF2 windows are also available. In addition, we can also produce other types of window crystals like YAG crystals, BaF2, MgF2,LiF Crystals, etc.

HGO has a mass-production line for CaF2 crystals and have wide experiences and strong ability to supply such crystals with large quantity and in very short delivery time.
