Fused Silica IPL Filter For Hair Removal

IPL Filter is the key optical element for IPL (intense Pulsed Light) machine, which blocks the UV wave and transmits the useful wave from 400nm to 1200nm for laser equipment, such as photo-rejuvenation hair removal, vascular and acne treatment, skin rejuvenation.

  • Product Origin:

    China
  • Shipping Port:

    Fuzhou, China
  • Lead Time:

    4 weeks
Share To : f t y b l ins
  • Product Detail

5.1、What is IPL filters?

IPL Filter is the key optical element for IPL (intense Pulsed Light) machine , which blocks the UV wave and transmits the useful waves from 400nm to 1200nm for laser equipment.


5.2、What are the applications of IPL Filters?

IPL Filters are an ideal for a variety of applications, such as IPL machine, IPL equipment, photo rejuvenation, hair removal, vascular and acne treatment, and skin rejuvenation.


5.3. Common Capability

Substrate

N-BK7, B270, Fused Silica or other

Dimension Tolerance

±0.1(General Precision),±0.01(High Precision)

Thickness Tolerance

±0.2(General Precision), 0.005(High Precision)

Surface Quality

60/40(General Precision), 20/10(High Precision)

Clear Aperture

>80%(General Precision), 95%(High Precision)

Parallelism

<3 arc min (General Precision),

<5 arc sec (High Precision)

Flatness

<λ/2@633nm(General Precision),

<λ/10@633nm (High Precision)

Work Wavelength Range

300~1200nm

T% avg. In Pass Band

>90%

T% avg. In Rejection Band

≤0.5%

Incidence Angle

Bevel

0.2~0.4mm×45°

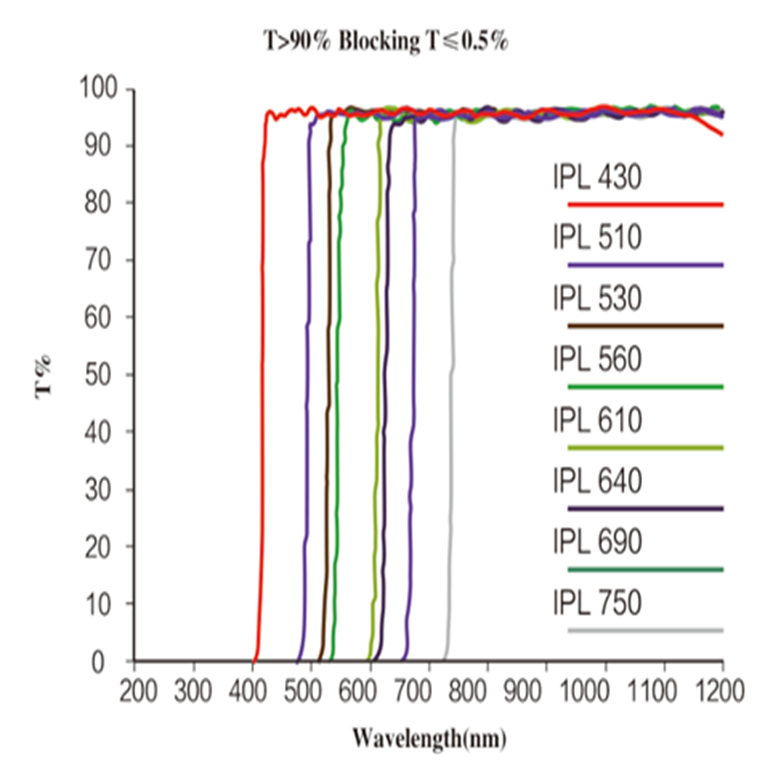

Available Wavelength

515~1200,530~1200,550~1200,560~1200,

570~1200,590~1200615~1200,

645~1200695~1200,755~1200,780~1200nm


5.4. Which wavelength HG OPTRONICS can offer?

HG OPTRONICS can offer the IPL Filter with different wavelength, including 495, 515, 550, 560, 570, 590, 615, 645, 695, 755, 780 nm and 1200nm. Others are available upon request.
